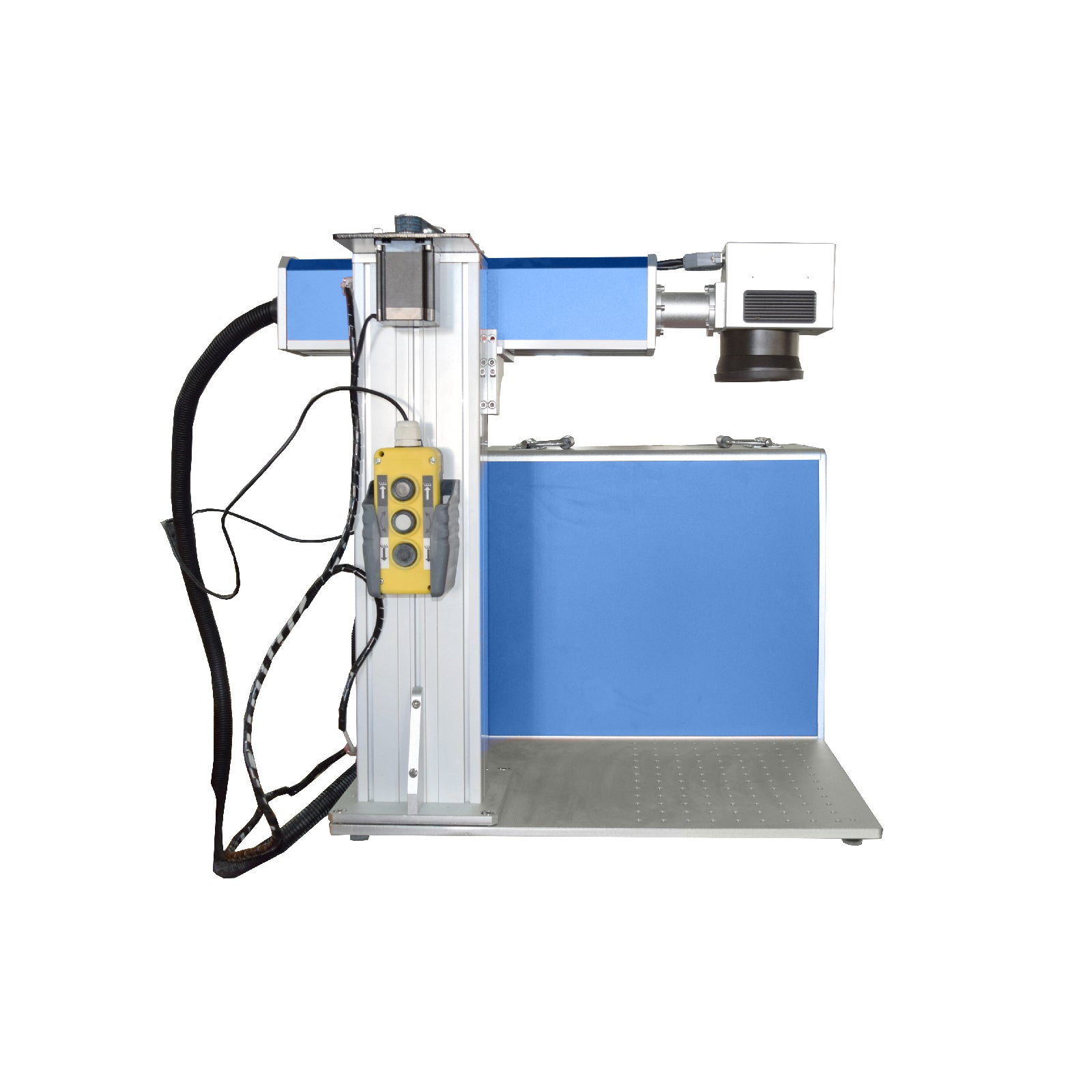

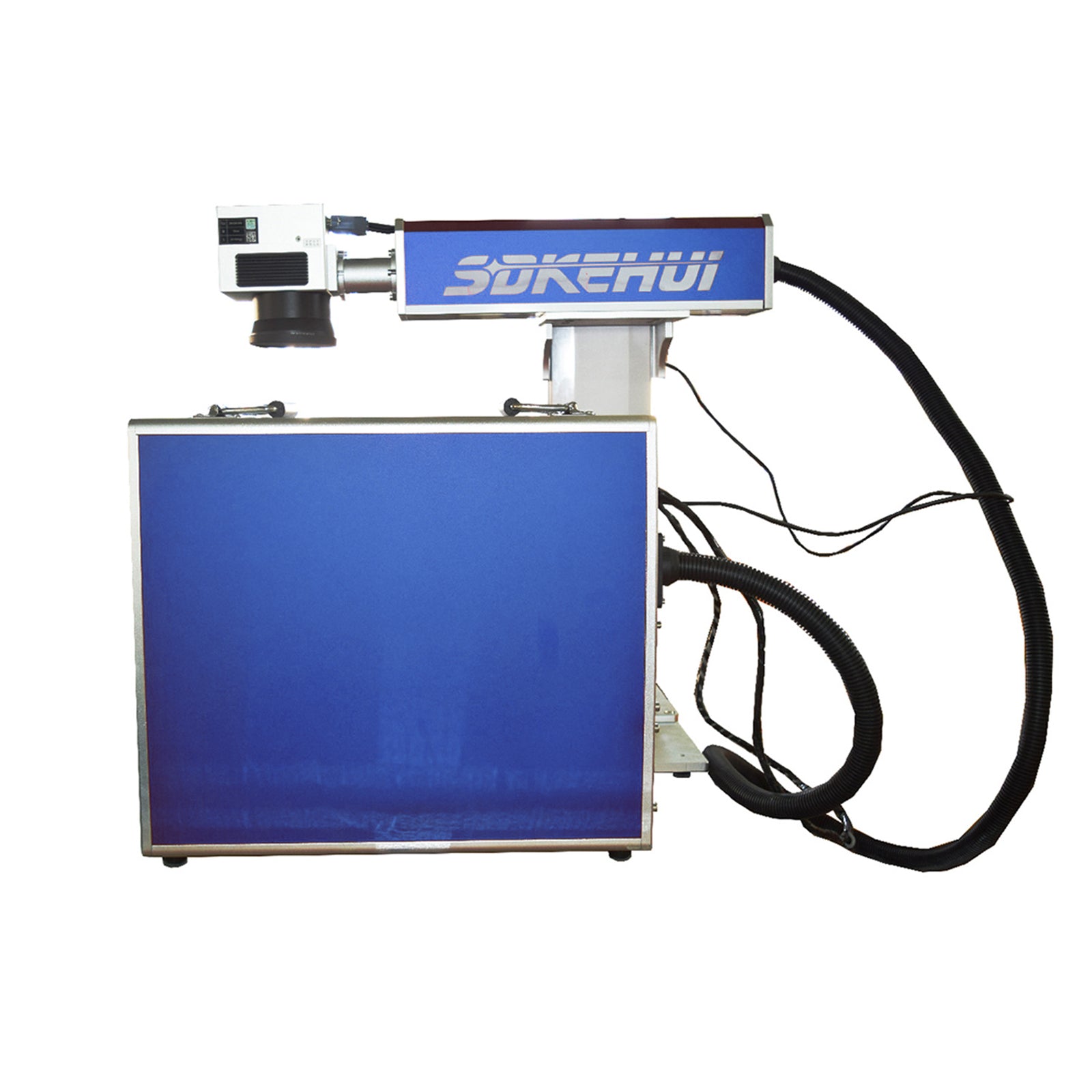

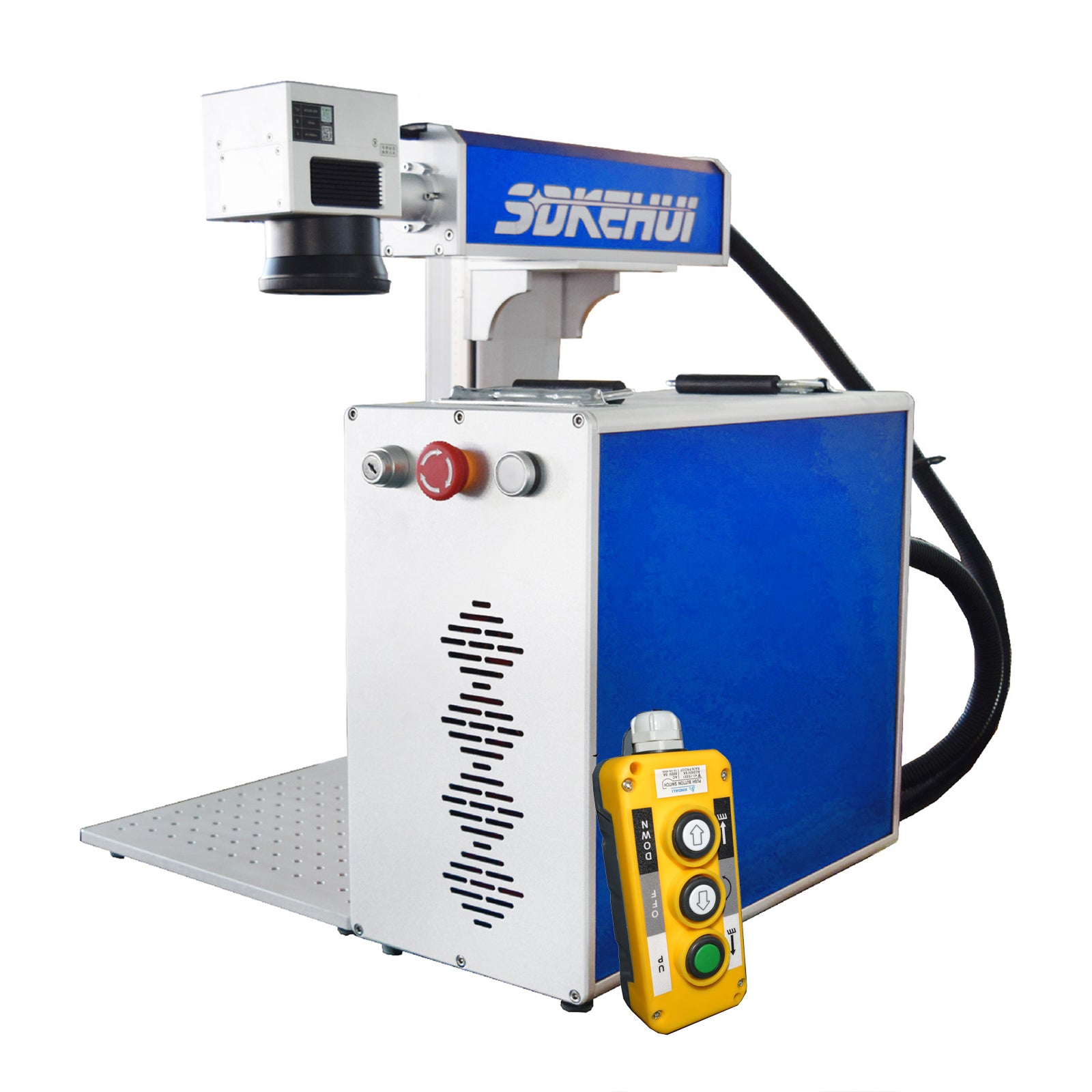

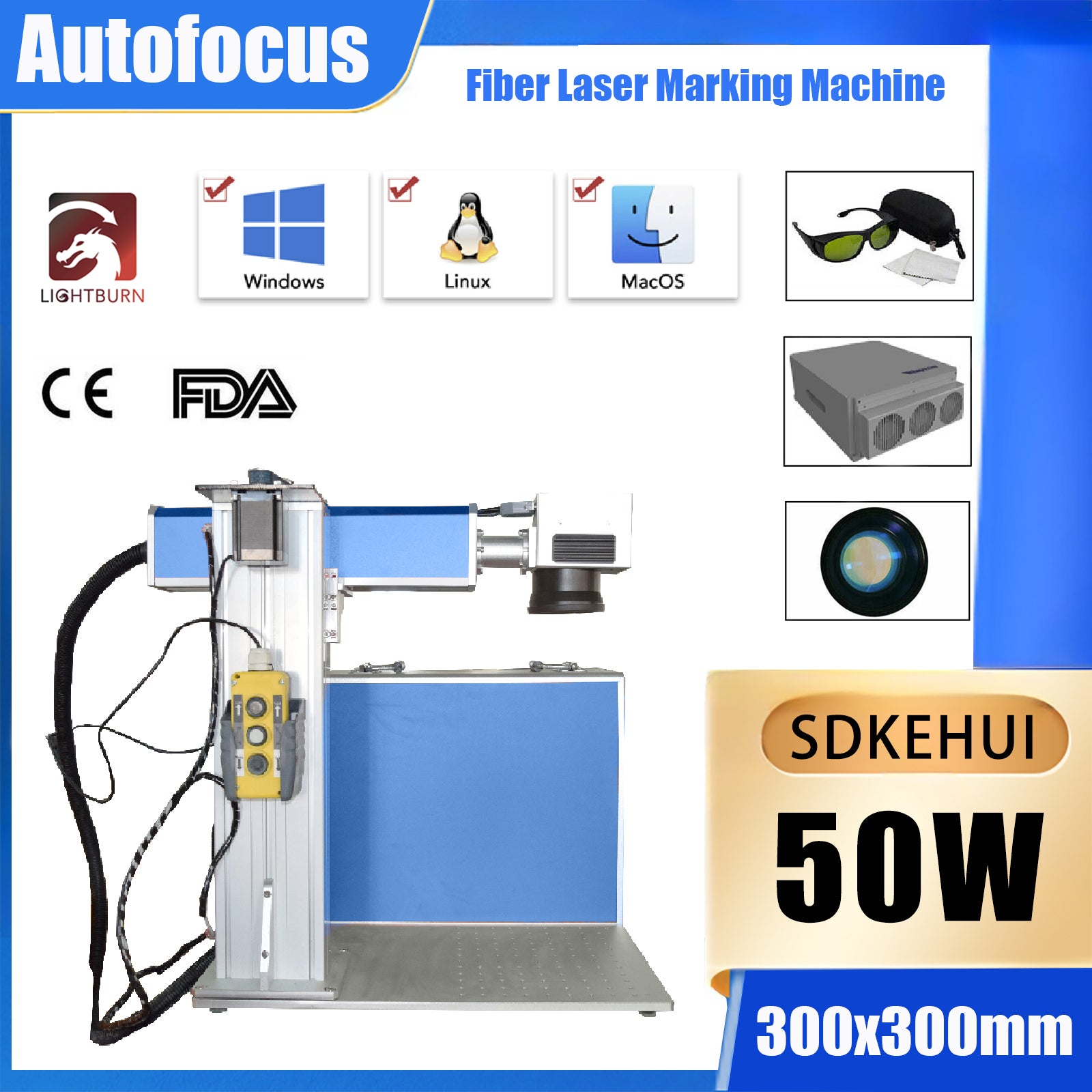

Raycus 50W 300x300mm Autofocus Metal Fiber Laser Engraving and Marking Machine

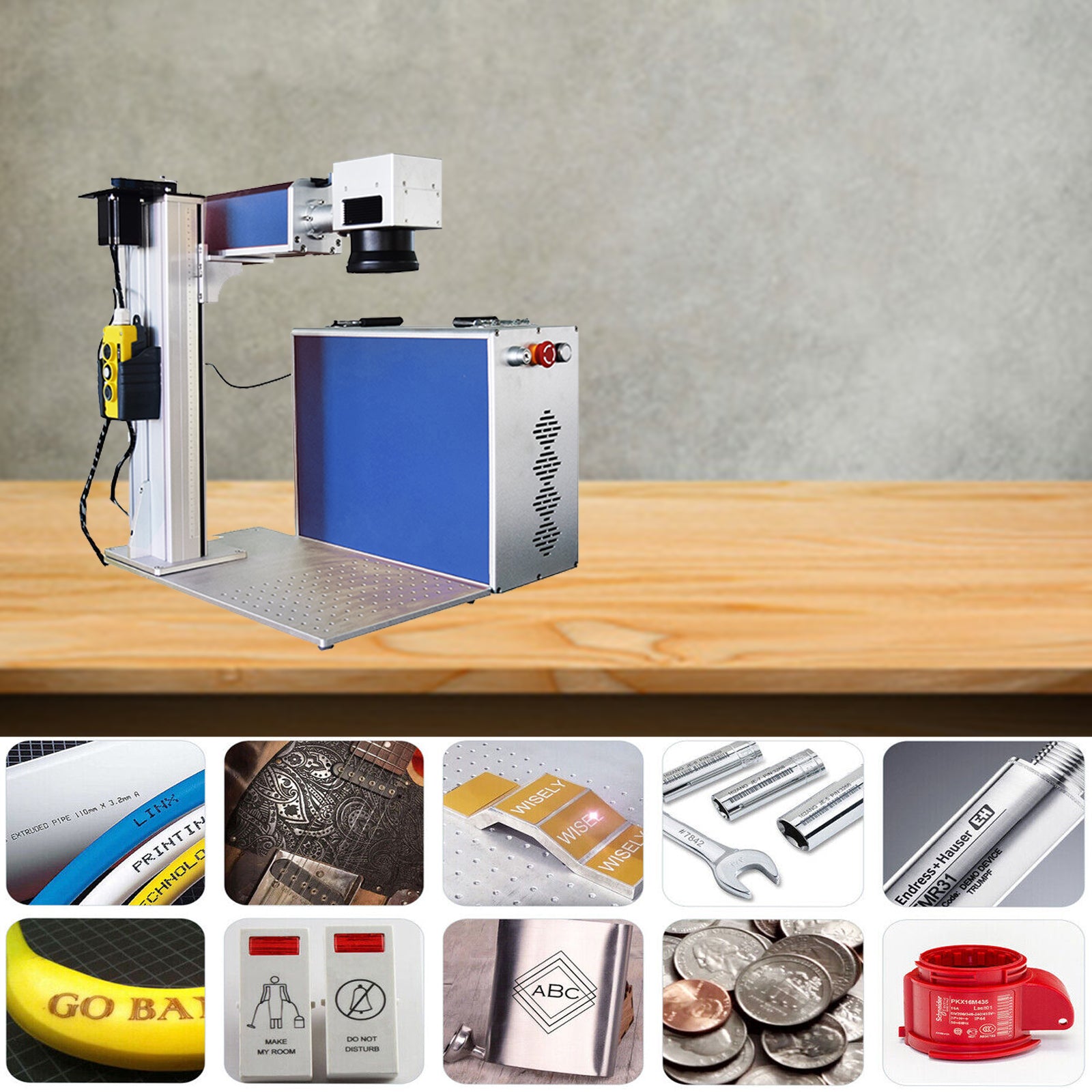

The 50W portable fiber laser machine can mark both metal and non-metal surfaces and is characterized by its robustness, high efficiency, durability, and reliability. It is widely used for marking jewelry, cell phone keypads, auto parts, electronic components, electronic devices, communication devices, sanitary ware, buckles, tableware, sterile equipment, hardware tools, knives, glassware, watches, stoves, stainless steel products, etc.



This fiber laser marker can be used for many different engraving projects. The upgraded optics include a Galyo lens for increased marking speed and high-precision engraving. The laser marking machine’s protective shield provides better eye protection while you work; if you don’t need the shield, you can remove it manually. It comes with a ruler and a field lens for the most precise markings. The large table can accommodate a wide variety of products, making your next engraving project easier than ever. Adjustable wheels allow you to set the height. A foot switch improves control. Compatible with a wide range of metallic and non-metallic materials, it is suitable for high-melting-point and brittle objects.



This upgraded laser marking machine with an enclosure is safer and protects your eyes while you work. If you don’t need the enclosure, you can also remove it manually.



Product Details:



SPECIFICATIONS:

Anwendung:	Application
Laser power:	50W
Stroke range of the fiber laser module:	100,000 hours
Beam quality:	M2 <1,6
Laser Q-hopping frequency:	50 kHz-100 kHz
Maximum single-pulse energy:	1 (mJ)
Marking line speed:	≤10000 mm/s
Minimum line width:	0,01 mm
Minimum number of characters:	0.15 mm (depending on the material)
Marking depth:	≤ 1 mm (adjustable, depending on the materials)
Repeatability:	±0,0001 mm
Diameter of the initial spot:	7 ± 1 mm
Laser output power:	10% ~ 100%, continuously adjustable
Laser wavelength:	1064nm
Power supply:	AC220V/50Hz
Operating system:	Windows
Markup format:	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT usw.
Laser type:	Faserlaser
Item condition:	New
Cooling system:	Built-in Air Cooling
System Data Transfer:	USB
Machine Operating Software:	Lightburn
Control software:	Ezcad (easy to use)
Certification:	CE
Laser source brand:	Raycus laser source
Package:	Wooden box
Key Selling Points:	Einfa h zu bedienen
Axis of rotation:	Optional
Marking area:	300mm*300mm
Warranty on Core Components:	2 years
Industries of Application:	Metallic materials and some non-metallic materials, such as electronic components, integrated circuit separators, electrical circuit hardware, plastic keys for auto parts, etc.
	The parameters listed above are laboratory test results that reflect actual operating conditions.

Product Benefits

❤ Red Dot Tour
Visible laser pointers make focusing quick and easy. The built-in red laser pointer synchronizes with the laser’s scanner, enabling precise work on the machine’s worktable.

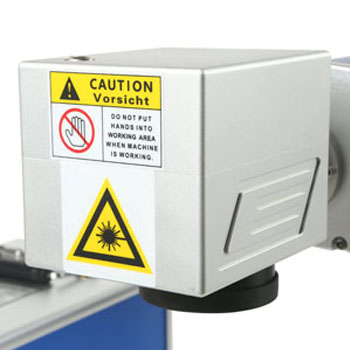

❤ Galvo Scanner
The galvo scanner and scanning system offer both outstanding accuracy and fast, stable marking of flat surfaces at speeds of up to 393.7 inches per second (10,000 mm/s).

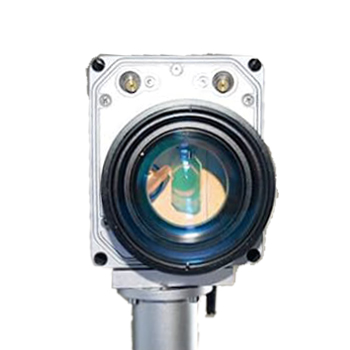

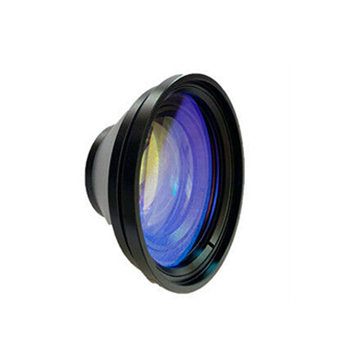

❤ Fθ Field Lens
Our Fθ lens enables vivid markings on flat surfaces and ensures a consistent, focused spot size across its 11.8×11.8″ (300×300 mm) working area. With distortion of less than 1%, even complex designs can be produced with incredible precision.

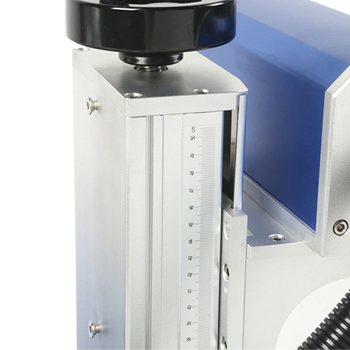

❤ Fiber Laser Autofocus Upgrade

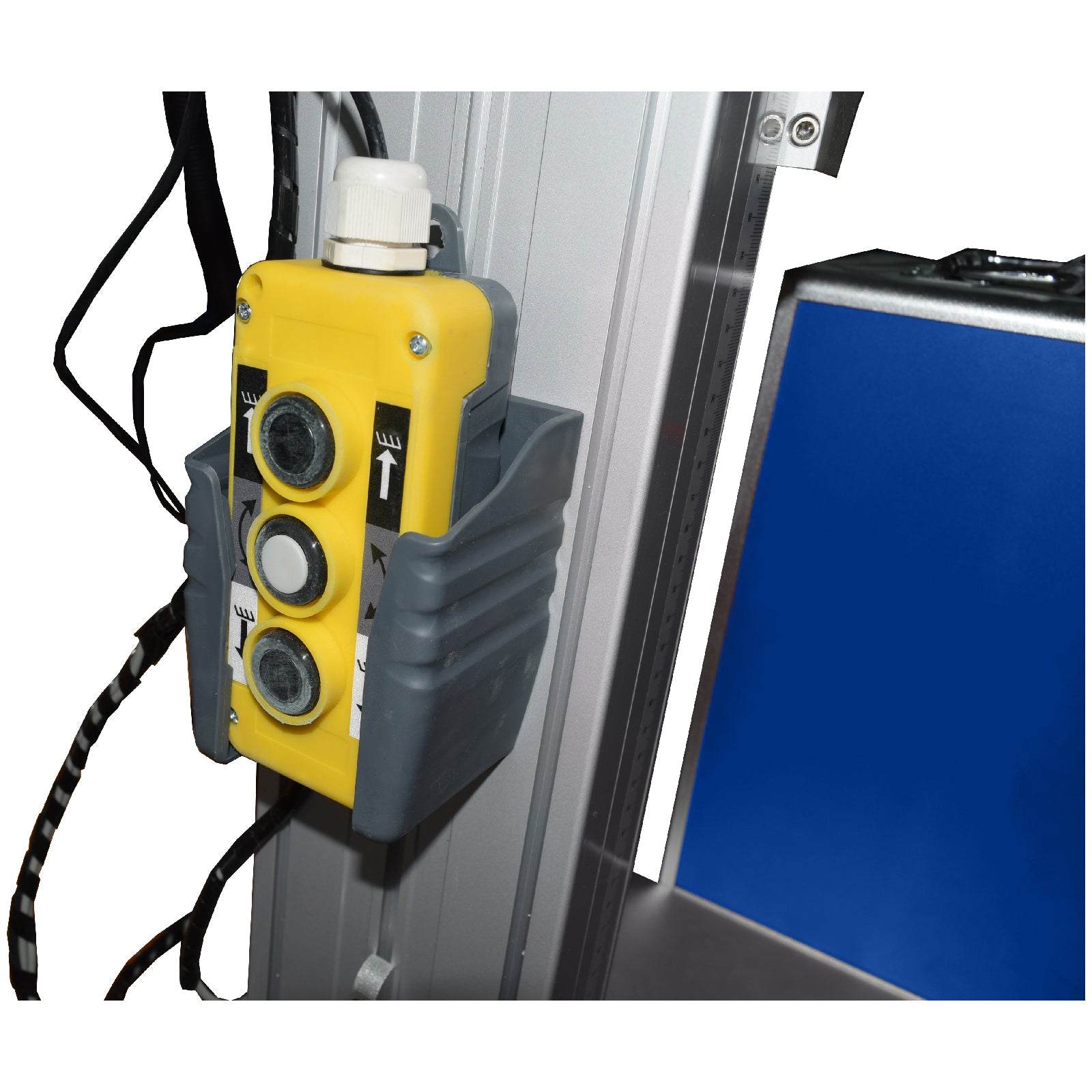

Fast autofocus: With the pre-installed autofocus tool, you can quickly adjust your laser’s focus directly via the handpiece without having to deal with tedious manual adjustments.

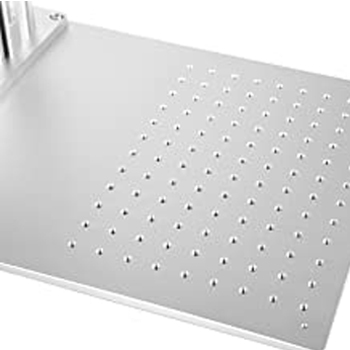

❤ Work Platform
A brief overview of the compact design, portable and compact interface, convenient operation, and flexible, adjustable controls.

❤ LightBurn-Compatible
Your EzCad2-based fiber laser engraver works with the latest LightBurn galvo functionality on Windows, macOS, and Linux systems, allowing you to create even the most complex patterns with ease

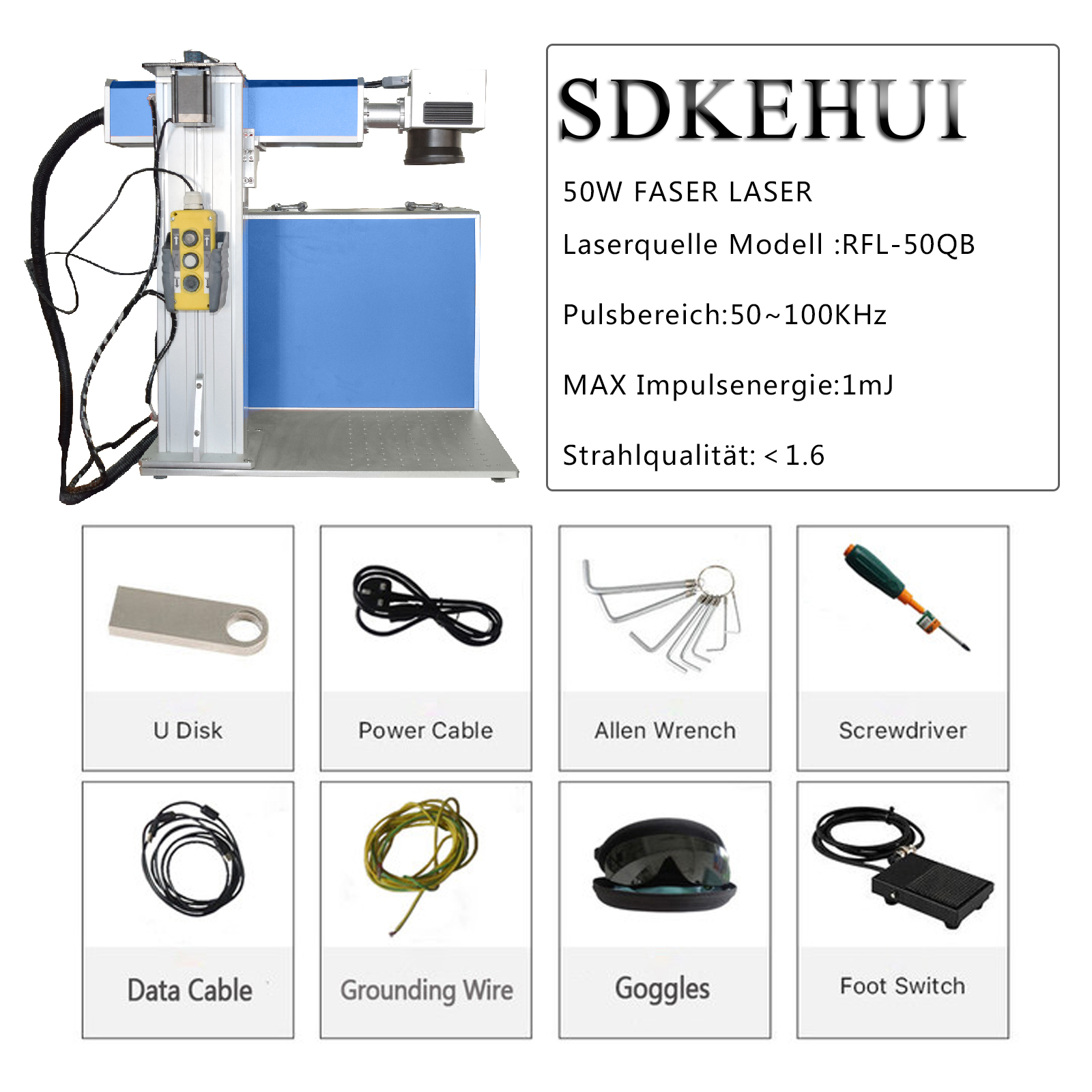

PACKAGING：
